Weather Audio Notifier

Create an auditory weather notification project.

Author Arduino
Last revision 01/18/2024

Introduction

This tutorial demonstrates how to use the Arduino Zero and the WiFi Shield 101 to act as a web client and parse Json formatted text. Json is well-known data-interchange format which is often used for communication between a server and client, and is particularly useful owing to its easy-to-read format and simplicity to parse and generate. In this example, weather information from openweathermap.org is used to display the current weather information. This is then periodically compared with weather information from the following hours.

Goals

  • About Json.
  • Use weather data to create an audio notification when the weather changes.

Hardware & Software Needed

The Circuit

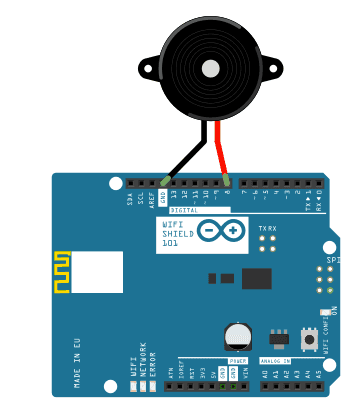

The red wire of the piezo is connected to digital pin 8, and the black wire to ground. Optionally, the audio can be improved by using preloaded .wav files instead of the

tone()
function, in which case the circuit from this audio player example can be substituted (with the addition of the WiFi Shield 101).

The circuit for this tutorial.
The circuit for this tutorial.

In the image above, the Arduino Zero board would be stacked below the WiFi Shield 101.

Installing Libraries

The ArduinoJson library can installed from Arduino IDE's library manager. To do this, open the Arduino IDE, go to Tools-> Manage Libraries.. There you can search ArduinoJson and install the library shown. The 'more info' link will take you to the GitHub page which includes all the documentation for the library. For a more detailed explanation on installing and importing libraries see this tutorial.

Parsing a Json

In this tutorial we use openweathermap.org to provide the Json information. An example of the raw information used can be found here, this is the API from openweathermap and the city can be changed in the URL.

Using the Json below as an example, we can see that it contains a lot of information, including the city, coordinates, rain, temperature, wind speeds, etc.

1{"city":{"id":3165524,"name":"Torino","coord":{"lon":7.68682,"lat":45.070492},"country":"IT","population":0,"sys":{"population":0}},"cod":"200","message":0.0066,"cnt":2,"list":[{"dt":1442404800,"main":{"temp":22.11,"temp_min":18.61,"temp_max":22.11,"pressure":989.45,"sea_level":1023.92,"grnd_level":989.45,"humidity":89,"temp_kf":3.5},"weather":[{"id":500,"main":"Rain","description":"light rain","icon":"10d"}],"clouds":{"all":80},"wind":{"speed":1.89,"deg":17.5001},"rain":{"3h":0.095},"sys":{"pod":"d"},"dt_txt":"2015-09-16 12:00:00"},{"dt":1442415600,"main":{"temp":22.93,"temp_min":19.62,"temp_max":22.93,"pressure":988.09,"sea_level":1022.61,"grnd_level":988.09,"humidity":79,"temp_kf":3.3},"weather":[{"id":804,"main":"Clouds","description":"overcast clouds","icon":"04d"}],"clouds":{"all":92},"wind":{"speed":2.01,"deg":29.502},"rain":{},"sys":{"pod":"d"},"dt_txt":"2015-09-16 15:00:00"}]}

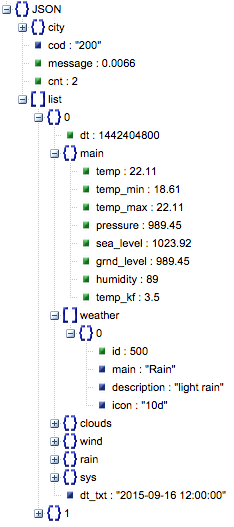

It is useful to view this information as a tree using an online Json formatter so that we can easily see which of the nested objects/arrays contains the information in which we are interested. The following image shows the tree view of the previous Json. It is easy to see that inside the root object 'JSON', there is an object called 'city' and an array called 'list' which contains two objects; '0' and '1'. the '0' array contains current weather information and '1' contains later weather information.

If we then open further the 'main' and 'weather' fields, we can see that main contains various information and that 'weather' contains a further object called [0]. The information accessed in this example is 'temp' and 'humidity' which are inside 'main', and 'description' which is inside '0' inside 'weather', all of which are found in both [0] and [1] from the 'list' array.

Json Tree View
Json Tree View

The part of the code that deals with parsing the information from the Json is seen in the following block. From the tree view, we can see that there is a root object which represents the entire Json and corresponds to the the 'root'

JsonObject
in the code. From there, we can access the list array with
'root["list"]'
. It can be seen that inside the list there are two objects;
[0]
and
[1]
, which correspond to 'now' and 'later' JsonObjects. Inside each of the objects
now
and
later
, there is an object called
main
and and an array called weather , inside which there is an object called
[0]
which contains the description. We are interested in the information inside
'main'
and
'weather -> [0]'
for both now and later, specifically, temperature, humidity and description. Therefore we can use the following code to access this information and store it either as a String or as a float. We can also access the city name directly from the root:

Note: Arduino Json library provides a syntax which allows you to navigate the tree starting from a JsonObject and searching the values by their labels.

1JsonArray& list = root["list"];
2

3JsonObject& now = list[0];
4

5JsonObject& later = list[1];
6

7String city = root["city"]["name"];
8float tempNow = now["main"]["temp"];
9float humidityNow = now["main"]["humidity"];
10

11String weatherNow = now["weather"][0]["description"];
12

13float tempLater = later["main"]["temp"];
14float humidityLater = later["main"]["humidity"];
15

16String weatherLater = later["weather"][0]["description"];

Code

The basic concept of this program is that it parses six fields from the Json; humidity, temperature and description for both now and later and compares them at an interval of 10 minutes (can be changed to a shorter period for testing). At the beginning of the sketch, you must manually enter the network name of your Wireless network, the password for this network and the city name and country code without spaces, for example: "NewYork,US".

1char ssid[] = "ssid";             //  your network SSID (name)
2char pass[] = "password";         // your network password (use for WPA, or use as key for WEP)
3int keyIndex = 0;                 // your network key Index number (needed only for WEP)
4

5String nameOfCity = "Turin,IT";   // your city of interest here in format "city,countrycode"

The melodies which will be played (for either a positive or negative weather change) are instantiated in the following block where the notes and note durations are defined for later:

1int posMelody[] = {330,415,494,659};     //E3,G#3,B3,E4
2int negMelody[] = {392,370,349,330};     //G3,F#3,F3,E3
3int noteDurations[] = {4, 4, 4, 8};      //Will correspond to note lengths 8th,8th,8th,4th

A statement to check if 10 minutes have passed is executed inside the loop, and if so a http request is made.

1if (millis() - lastConnectionTime > postingInterval) {
2

3    // note the time that the connection was made:
4

5    lastConnectionTime = millis();
6

7    httpRequest();
8

9  }

After that, there is a check to see whether there are incoming bytes available, which will only happen once every 10 minutes after the http request. Since it is known that a Json message is a nest of curly brackets and that for each open bracket there must be a close bracket, we can deduce that the message starts at the first curly bracket in the stream and ends when the number of open brackets - close brackets = 0. Therefore, the following code waits for the first curly bracket and then sets a variable

startJson
to
1
, indicating that the message has started, and increments a variable endResponse which decrements each time the incoming byte is a close bracket. Then, if
startJson
is true, i.e the message has started, the incoming byte is appended to the string text. If
endResponse = 0
indicating that there were an equal number of close and open brackets, then the message is over, providing that it started (startJson = 1). When both these conditions are met, then the Json is ready to be parsed and the string is sent to the
parseJson()
function.

1if (client.available()) {
2

3    c = client.read();
4

5    // json contains equal number of open and close curly brackets, therefore by counting
6

7    // the open and close occurrences, we can determine when a json is completely received
8

9    // endResponse == 0 means equal number of open and close curly brackets reached
10

11    if (endResponse == 0 && startJson == true) {
12

13      parseJson(text.c_str());  // parse c string text in parseJson function
14

15      text = "";                // clear text string for the next time
16

17      startJson = false;        // set startJson to false to indicate that a new message has not yet started
18

19    }
20

21    if (c == '{') {
22

23      startJson = true;         // set startJson true to indicate json message has started
24

25      endResponse++;
26

27    }
28

29    if (c == '}') {
30

31      endResponse--;
32

33    }
34

35    if (startJson == true) {
36

37      text += c;
38

39    }
40

41  }

The function

printDiffFloat()
compares the two values of the now and later floats and if there is a difference and if so, the difference is printed on the serial monitor. If there is no change, the return; exits the function and nothing is printed nor played.

1void printDiffFloat(float now, float later, String parameter, String unit) {
2

3  String change;
4

5  if (now > later) {        //if parameter is higher now than later
6

7    change = "drop from ";
8

9  }
10

11  else if (now < later) {   //else if parameter is higher later than now
12

13    change = "rise from ";
14

15  }
16

17  else {                    //else there is no difference
18

19    return;                 //exit function printDiffFloat
20

21  }
22

23  Serial.print("UPDATE: The " + parameter + "will " + change); //print change
24

25  Serial.print(now);
26

27  Serial.print(unit + " to ");
28

29  Serial.print(later);
30

31  Serial.println(unit + "!");
32}

The function

printDiffString()
checks for keywords inside the now and later strings. If the index of a word such as "rain" is not found because it does not exist inside the string, then the value of the int is set to
-1
. We can then check to see if the word was not in the string of current data but does exist in the string for the future data
(int != -1)
, and if so we can send a notification, either the positive or negative short melody depending on the change and the information of the change is printed in the serial monitor. Note that the search for clear is in a different statement than for words rain, snow and hail so that a positive notification is sounded instead of negative.

1void printDiffString(String now, String later, String weatherType) {
2

3  int indexNow = now.indexOf(weatherType);
4

5  int indexLater = later.indexOf(weatherType);
6

7  //for all types of weather except for clear skies, if the current weather does not contain the weather type and the later message does, send notification
8

9  if (weatherType != "clear") {
10

11    if (indexNow == -1 && indexLater != -1) {
12

13      Serial.println("Oh no! It is going to " + weatherType + " later! Predicted " + later);
14

15      for (int thisNote = 0; thisNote < 4; thisNote++) {
16

17        int noteDuration = 1000 / noteDurations[thisNote];
18

19        tone(8, negMelody[thisNote], noteDuration);      //play negative melody through piezo
20

21      }
22

23    }
24

25  }
26

27  //for clear skies, if the current weather does not contain the word clear and the later message does, send notification that it will be sunny later
28

29  else {
30

31    if (indexNow == -1 && indexLater != -1) {
32

33      Serial.println("It is going to be sunny later! Predicted " + later);
34

35      for (int thisNote = 0; thisNote < 4; thisNote++) {
36

37        int noteDuration = 1000 / noteDurations[thisNote];
38

39        tone(8, posMelody[thisNote], noteDuration);      //play positive melody through piezo
40

41      }
42

43    }
44

45  }
46}

The full sketch can be seen below:

1/*
2

3Weather Audio Notifier
4

5Hardware Required:
6

7* Arduino Zero Board
8

9* Arduino WIFI Shield 101
10

11

12* Piezo
13

14Software Required:
15

16* ArduinoJson Library
17

18 created Sept 2015
19

20 by Helena Bisby <support@arduino.cc>
21

22This example code is in the public domain
23

24http://arduino.cc/en/Tutorial/WeatherAudioNotifier
25

26

27

28*/
29

30#include <SPI.h>
31#include <WiFi101.h>
32#include <ArduinoJson.h>
33

34#define JSON_BUFF_DIMENSION 2500
35#include "arduino_secrets.h"
36///////please enter your sensitive data in the Secret tab/arduino_secrets.h
37char ssid[] = SECRET_SSID;        // your network SSID (name)
38char pass[] = SECRET_PASS;    // your network password (use for WPA, or use as key for WEP)
39int keyIndex = 0;            // your network key Index number (needed only for WEP)
40

41String nameOfCity = "Turin,IT";   // your city of interest here in format "city,countrycode"
42

43String text;
44int endResponse = 0;
45boolean startJson = false;
46int posMelody[] = {330, 415, 494, 659};  //E3,G#3,B3,E4
47int negMelody[] = {392, 370, 349, 330};  //G3,F#3,F3,E3
48int noteDurations[] = {4, 4, 4, 8};      //Will correspond to note lengths 8th,8th,8th,4th
49int status = WL_IDLE_STATUS;
50

51const char server[] = "api.openweathermap.org";    // name address for openweathermap (using DNS)
52

53WiFiClient client;
54unsigned long lastConnectionTime = 10 * 60 * 1000;     // last time you connected to the server, in milliseconds
55

56const unsigned long postingInterval = 10 * 60 * 1000;  // posting interval of 10 minutes  (10L * 1000L; 10 seconds delay for testing)
57

58void setup() {
59

60  //Initialize serial and wait for port to open:
61

62  Serial.begin(9600);
63

64  text.reserve(JSON_BUFF_DIMENSION);
65

66  // check for the presence of the shield:
67

68  if (WiFi.status() == WL_NO_SHIELD) {
69

70    Serial.println("WiFi shield not present");
71

72    // don't continue:
73

74    while (true);
75

76  }
77

78  // attempt to connect to Wifi network:
79

80  while ( status != WL_CONNECTED) {
81

82    Serial.print("Attempting to connect to SSID: ");
83

84    Serial.println(ssid);
85

86    // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
87

88    status = WiFi.begin(ssid, pass);
89

90    // wait 10 seconds for connection:
91

92    delay(10000);
93

94  }
95

96  // you're connected now, so print out the status:
97

98  printWifiStatus();
99}
100

101void loop() {
102

103  // if ten minutes have passed since your last connection,
104

105  // then connect again and send data:
106

107  if (millis() - lastConnectionTime > postingInterval) {
108

109    // note the time that the connection was made:
110

111    lastConnectionTime = millis();
112

113    httpRequest();
114

115  }
116

117  char c = 0;
118

119  if (client.available()) {
120

121    c = client.read();
122

123    // json contains equal number of open and close curly brackets, therefore by counting
124

125    // the open and close occurrences, we can determine when a json is completely received
126

127

128

129    // endResponse == 0 means equal number of open and close curly brackets reached
130

131    if (endResponse == 0 && startJson == true) {
132

133      parseJson(text.c_str());  // parse c string text in parseJson function
134

135      text = "";                // clear text string for the next time
136

137      startJson = false;        // set startJson to false to indicate that a new message has not yet started
138

139    }
140

141    if (c == '{') {
142

143      startJson = true;         // set startJson true to indicate json message has started
144

145      endResponse++;
146

147    }
148

149    if (c == '}') {
150

151      endResponse--;
152

153    }
154

155    if (startJson == true) {
156

157      text += c;
158

159    }
160

161  }
162}
163void parseJson(const char * jsonString) {
164

165  StaticJsonBuffer<4000> jsonBuffer;
166

167  // FIND FIELDS IN JSON TREE
168

169  JsonObject& root = jsonBuffer.parseObject(jsonString);
170

171  if (!root.success()) {
172

173    Serial.println("parseObject() failed");
174

175    return;
176

177  }
178

179  JsonArray& list = root["list"];
180

181  JsonObject& now = list[0];
182

183  JsonObject& later = list[1];
184

185  String city = root["city"]["name"];
186

187  float tempNow = now["main"]["temp"];
188

189  float humidityNow = now["main"]["humidity"];
190

191  String weatherNow = now["weather"][0]["description"];
192

193  float tempLater = later["main"]["temp"];
194

195  float humidityLater = later["main"]["humidity"];
196

197  String weatherLater = later["weather"][0]["description"];
198

199  printDiffFloat(tempNow, tempLater, "temperature", "*C");
200

201  printDiffString(weatherNow, weatherLater, "rain");
202

203  printDiffString(weatherNow, weatherLater, "snow");
204

205  printDiffString(weatherNow, weatherLater, "hail");
206

207  printDiffString(weatherNow, weatherLater, "clear");
208

209  printDiffFloat(humidityNow, humidityLater, "humidity", "%");
210

211  Serial.println();
212

213}
214

215// this method makes a HTTP connection to the server:
216void httpRequest() {
217

218  // close any connection before send a new request.
219

220  // This will free the socket on the WiFi shield
221

222  client.stop();
223

224  // if there's a successful connection:
225

226  if (client.connect(server, 80)) {
227

228    // Serial.println("connecting...");
229

230    // send the HTTP PUT request:
231

232    client.println("GET /data/2.5/forecast?q=" + nameOfCity + "&mode=json&units=metric&cnt=2 HTTP/1.1");
233

234    client.println("Host: api.openweathermap.org");
235

236    client.println("User-Agent: ArduinoWiFi/1.1");
237

238    client.println("Connection: close");
239

240    client.println();
241

242  }
243

244  else {
245

246    // if you couldn't make a connection:
247

248    Serial.println("connection failed");
249

250  }
251}
252

253void printDiffString(String now, String later, String weatherType) {
254

255  int indexNow = now.indexOf(weatherType);
256

257  int indexLater = later.indexOf(weatherType);
258

259  // for all types of weather except for clear skies, if the current weather does not contain the weather type and the later message does, send notification
260

261  if (weatherType != "clear") {
262

263    if (indexNow == -1 && indexLater != -1) {
264

265      Serial.println("Oh no! It is going to " + weatherType + " later! Predicted " + later);
266

267      for (int thisNote = 0; thisNote < 4; thisNote++) {
268

269        int noteDuration = 1000 / noteDurations[thisNote];
270

271        tone(8, negMelody[thisNote], noteDuration);      // play negative melody through piezo
272

273      }
274

275    }
276

277  }
278

279  // for clear skies, if the current weather does not contain the word clear and the later message does, send notification that it will be sunny later
280

281  else {
282

283    if (indexNow == -1 && indexLater != -1) {
284

285      Serial.println("It is going to be sunny later! Predicted " + later);
286

287      for (int thisNote = 0; thisNote < 4; thisNote++) {
288

289        int noteDuration = 1000 / noteDurations[thisNote];
290

291        tone(8, posMelody[thisNote], noteDuration);      // play positive melody through piezo
292

293      }
294

295    }
296

297  }
298}
299

300void printDiffFloat(float now, float later, String parameter, String unit) {
301

302  String change;
303

304  if (now > later) {
305

306    change = "drop from ";
307

308  }
309

310  else if (now < later) {
311

312    change = "rise from ";
313

314  }
315

316  else {
317

318    return;
319

320  }
321

322  Serial.print("UPDATE: The " + parameter + " will " + change);
323

324  Serial.print(now);
325

326  Serial.print(unit + " to ");
327

328  Serial.print(later);
329

330  Serial.println(unit + "!");
331}
332

333void printWifiStatus() {
334

335  // print the SSID of the network you're attached to:
336

337  Serial.print("SSID: ");
338

339  Serial.println(WiFi.SSID());
340

341  // print your WiFi shield's IP address:
342

343  IPAddress ip = WiFi.localIP();
344

345  Serial.print("IP Address: ");
346

347  Serial.println(ip);
348

349  // print the received signal strength:
350

351  long rssi = WiFi.RSSI();
352

353  Serial.print("signal strength (RSSI):");
354

355  Serial.print(rssi);
356

357  Serial.println(" dBm");
358}

Testing It Out

After you have uploaded the code, if there is a change in weather conditions of the selected city of interest defined in

String nameOfCity = "cityname,countrycode"
; an update of the changes is written to the serial monitor and the piezo will generate an audio notification depending on the result of the weather change.

Troubleshoot

If the code is not working, there are some common issues we can troubleshoot:

  • You have not installed the ArduinoJson library.
  • You have entered the incorrect
    ssid
    or
    pass
    of your network.

Conclusion

In this example, we have learned how to create a weather notification project that notifies you when weather conditions change! All of this is possible because of Json and the ArduinoJson library. Now that you have finished this tutorial, you can start to use Json for other cool applications and projects.

Suggested changes

The content on docs.arduino.cc is facilitated through a public GitHub repository. You can read more on how to contribute in the contribution policy.

Need support?

Help CenterAsk the Arduino ForumDiscover Arduino Discord

License

The Arduino documentation is licensed under the Creative Commons Attribution-Share Alike 4.0 license.

ON THIS PAGE
